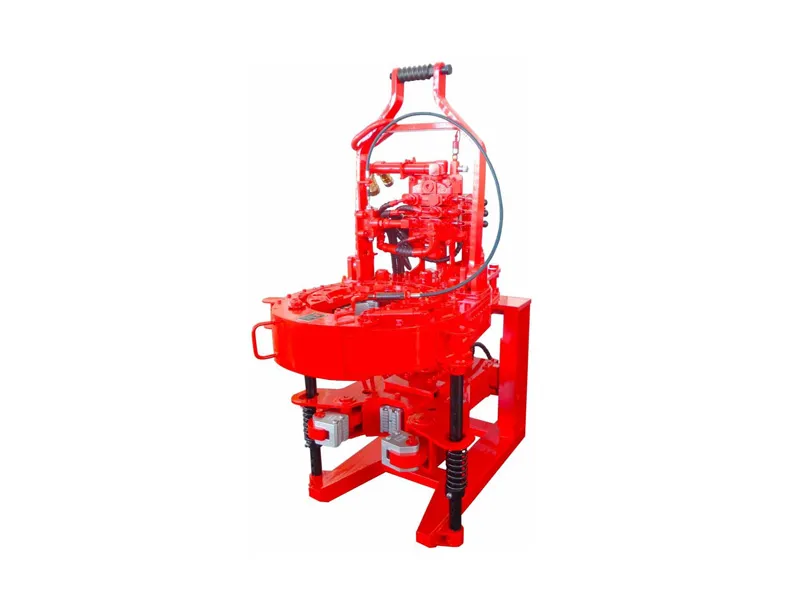

KHT7625 Type Casing Power Tong

The KHT (KT) hydraulic power tongs are open-type power tongs applicable for making up and breaking out oil casing pipes during oil field workover operations.They featurehighoperating eiciency, significantly reducethelabor intensity of workers, improve the quality of pipe string thread connections, and reduce pipe string accidents caused by improper workover operations.
The front two-jaw-plates of the master tong are in the swing structure and the back jaw plate is the roller-climbing structure. The assembly and disassembly is very convenient. The optimum tangent-diameter ratio design ensures reliable clamping and easy slope retreating.The back tong is the three-jaw-plate structure pushed by hydraulic cylinder. The structure is simple and the clamping is reliable.
Four-gear rotation is adopted for large speed regulation range. And the rated torque is large.
It has the braking mode with braking staple.The braking torque is large.The operation is simple.And it is convenient for repair and replacement.
With the open large gear suporting structure, hardness and rigidity of open large gear is enhanced considerably:
The shellis made of stel plate with high hardness.The overall hardness isgood. Various jaw plates are made with fine casting and forging process. It has beautiful apearance and high hardness.
Hydraulic torque indicator is provided. And installation interface of turning torque instrument is provided for computerized management.
KHT7625 hydraulic casing pliers are a derivative model of KHT9625 hydraulic casing pliers, suitable for 60-194mm (23/8 "~75/8") oil pipes, drill pipe joints, and small casings.

Characteristics：
The negative camber rollers inside master tong climbing and clamping have the same clamping property when clamp all kinds of applicable range of tubing or specified tube sizes.
Two swing head jaws, convenient to assemble and disassemble. The design of best cutting diameter can ensure the reliable clamping and easy back climbing;
Brake belt assembly, easy to operate and convenient to maintain and replace.
Alloy structural steel plate used on the shell, increasing the strength.
It can equipped torque control system, which can indicate, record and control make-up torque.

Technical Parameters：
1. Applicable Pipe Diameter Range:    2 3/8″-7 5/8″
Randomly allocate 3 types of conventional jaw plates：5 1/2″ 、6 5/8″ 、7 5/8″;Other：2 3/8″、2 7/8″、3 1/2″   4″、4 1/2″、5″、7″ The E-board can be assembled as needed.
2. Clamp Head Speed： High-Grade 48 rpm   Low End 10 rpm
3. Torque： High-Grade 7 kN.m    Low End 34 kN.m
4. Rated Pressure    14 MPa
5. Work Flow    189 L／min
6. Dimensions (Length x Width x Height) 1400×955×1800 mm
7. Weight    1200 kg


Application Scenarios
