The KHT (KT) hydraulic power tongs are open-type power tongs applicable for making up and breaking out oil casing pipes during oil field workover operations.They featurehighoperating eiciency, significantly reducethelabor intensity of workers, improve the quality of pipe string thread connections, and reduce pipe string accidents caused by improper workover operations.
The front two-jaw-plates of the master tong are in the swing structure and the back jaw plate is the roller-climbing structure. The assembly and disassembly is very convenient. The optimum tangent-diameter ratio design ensures reliable clamping and easy slope retreating.The back tong is the three-jaw-plate structure pushed by hydraulic cylinder. The structure is simple and the clamping is reliable.
Four-gear rotation is adopted for large speed regulation range. And the rated torque is large.
It has the braking mode with braking staple.The braking torque is large.The operation is simple.And it is convenient for repair and replacement.
With the open large gear suporting structure, hardness and rigidity of open large gear is enhanced considerably:
The shellis made of stel plate with high hardness.The overall hardness isgood. Various jaw plates are made with fine casting and forging process. It has beautiful apearance and high hardness.
Hydraulic torque indicator is provided. And installation interface of turning torque instrument is provided for computerized management.

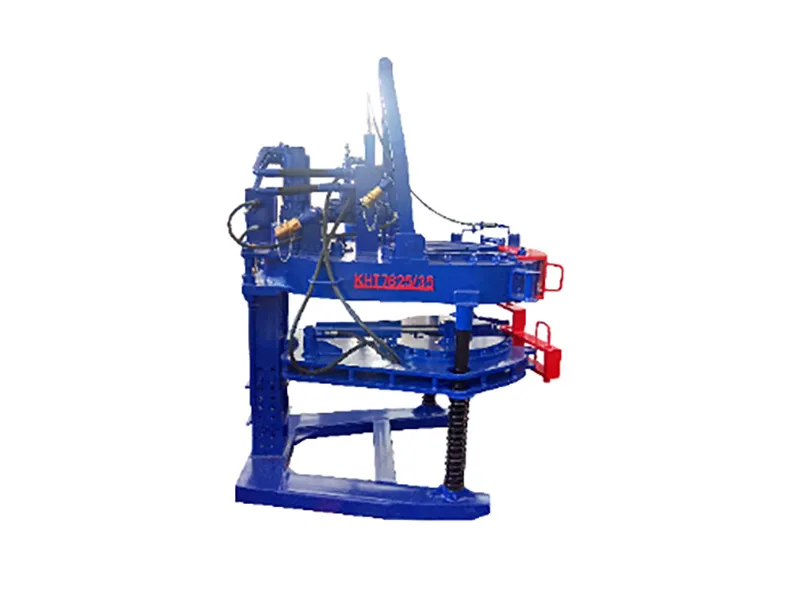

The KHT7625/35 casing power tong is suitable for unloading pipe string threads during casing operations in oil fields and mines. It has high operating efficiency, greatly reduces the labor intensity of workers, and can improve the quality of casing string thread connections, reducing casing string accidents caused by improper casing operations.

Characteristic：
Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.
Two swing head jaws, convenient to assemble and disassemble. The design of best cutting diameter can ensure the reliable clamping and easy back climbing;
Brake belt assembly, easy to operate and convenient to maintain and replace.
Open gear supporting structure, improving the strength and rigidity.
Wholly hydraulic mode and mechanical gear shift.
High strength steel plate used on the shell，increasing the strength.
Hydraulic torque indicator is provided. And installation interface of turning torque instrument is provided for computerized management.
Large torque range，can meet the requirement of larger torque use.

Technical Parameters：
1.Applicable Pipe Diameter Range: 2 3/8″-7 5/8″
Randomly allocate 3 types of conventional jaw plates：51/2″、65/8″、75/8″；The remaining：23/8″、 27/8″、 31/2″、 4″、41/2″、5″、7″  The jaw plate can be assembled as needed。
2. Opening Size: 210 mm
3. Clamp Head Speed: High-Grade  48   rpm         Next Lowest Gear  10   rpm
4. Torque: High-Grade 6  kN.m       Low End 35  kN.m
5. Rated Pressure: 12 MPa
6. Work Flow:  150  L／min
7. Dimensions (Length x Width x Height) 1400×950×1080 mm
8. Weight 1300 kg


Application Scenarios
