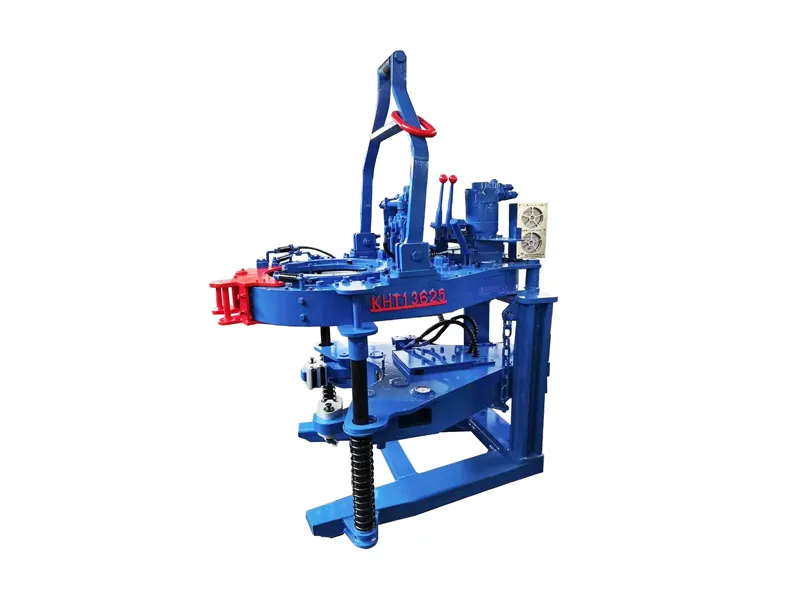

KHT13625 Type Casing Power Tong

The KHT (KT) hydraulic power tongs are open-type power tongs applicable for making up and breaking out oil casing pipes during oil field workover operations.They featurehighoperating eiciency, significantly reducethelabor intensity of workers, improve the quality of pipe string thread connections, and reduce pipe string accidents caused by improper workover operations.
The front two-jaw-plates of the master tong are in the swing structure and the back jaw plate is the roller-climbing structure. The assembly and disassembly is very convenient. The optimum tangent-diameter ratio design ensures reliable clamping and easy slope retreating.The back tong is the three-jaw-plate structure pushed by hydraulic cylinder. The structure is simple and the clamping is reliable.
Four-gear rotation is adopted for large speed regulation range. And the rated torque is large.
It has the braking mode with braking staple.The braking torque is large.The operation is simple.And it is convenient for repair and replacement.
With the open large gear suporting structure, hardness and rigidity of open large gear is enhanced considerably:
The shellis made of stel plate with high hardness.The overall hardness isgood. Various jaw plates are made with fine casting and forging process. It has beautiful apearance and high hardness.
Hydraulic torque indicator is provided. And installation interface of turning torque instrument is provided for computerized management.
The KHT13625 casing power tong is suitable for unloading pipe string threads during casing operations in oil fields and mines. It has high operating efficiency, greatly reduces the labor intensity of workers, improves the quality of casing string thread connections, and reduces casing string accidents caused by improper casing operations.

Characteristics:
Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.
Double swing head jaws, convenient to assemble and disassemble.
Brake belt assembly, easy to operate and convenient to maintain and replace.
Open gear supporting structure, improving the strength and rigidity.
High strength steel plate used on the shell，increasing the strength. The jaws are cast with precise technology, artistic and strong.
This tong equipped with hydraulic torque indication gauge and install interface for it. It isconvenient to realize computerized management. The safety door adopts hydraulic insurance divece,has good safety performance.
Large torque range，can meet the requirement of larger torque use.

Technical Parameters：
1.   Applicable Pipe Diameter Range：Main Clamp 4″-13 5/8″（Φ101-346）Back Clamp     4″-13 5/8″（Φ101-346）
2.   Opening Size：355.4 mm
3.   Clamp Head Speed：High Gear 30 rpm         Low Gear 6 rpm
4.   Rated Torque：High Gear 8.4 kN.m      Low Gear 42 kN.m
5.   Rated Pressure：16 MPa
6.   Work Flow Rate：150 L／min
7.  Hydraulic Power Station：Flow Rate 160 L／min     Pressure 20 MPa   Motor Power 37 KW
8.  Dimensions (Length x Width x Height) :1600×1080×1940 mm
9.  Weight：Main Clamp 650 kg            Combination Clamp 1350kg
10.Jaw Plate Specifications：3 types of conventional jaw plates are randomly provided：51/2″、95/8″、133/8″
Others：4″、 4 1/2″、7″ 、7 5/8″、8 5/8″、10 3/4″、11 3/4″、12 3/4″、13 5/8″are optional
