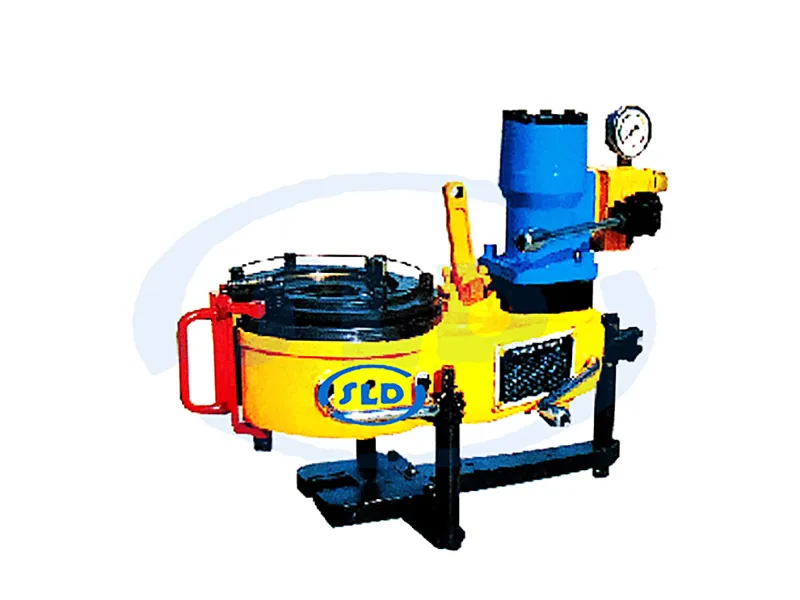

The sucker rod power clamp is a specialized machinery used for loading and unloading various sucker rods in oilfield well repair operations,
Characteristic：
This product has the following features:
The structure is compact ,concise and light. Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner.
The operating is briefness and convenience with die. Put the corresponding size jaw set into master tong and the corresponding size gripper into backup tong. turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed, snapping at low speed, spinning at high speed.
The braking mechanism set above the tong head cover. It’s convenient for adjustment and maintenance.
The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on the master tong, the backup tong will automatically clip or simultaneously loosen the tube pillar.
Adjust the oil supply pressure, users can obtain the best make-up torque of various kinds oil tube.
The low gear has large torque, it is particularly suitable for difficult break-out thread cause of corrosion e.g.


Application Scenarios



Model	XQ28/1.8	XQ28/2.6
Main Clamp Adaptation Range	Sucker Rod GYG 16 19 22 25 28，Φ48~60 Oil Pipe	Sucker Rod GYG 16 19 22 25 28
Adaptability Range of The Back Clamp	Sucker Rod GYG 16 19 22 25 28，Φ48~60 Oil Pipe	Sucker Rod GYG 16 19 22 25 28
Rated High - End Torque	700 N.m	1000 N.m
Rated Low - End Torque	1800 N.m	2600 N.m
Rated High Speed	104 RPM	98 RPM
Rated Low - End speed	40 RPM	32 RPM
Rated Oil Supply	10 MPa @ 65 LPM	10 MPa @ 80 LPM
External Dimensions	543X334X404mm	670X383X490mm
Mobile Quality (Including Pliers)	105kg	100kg
