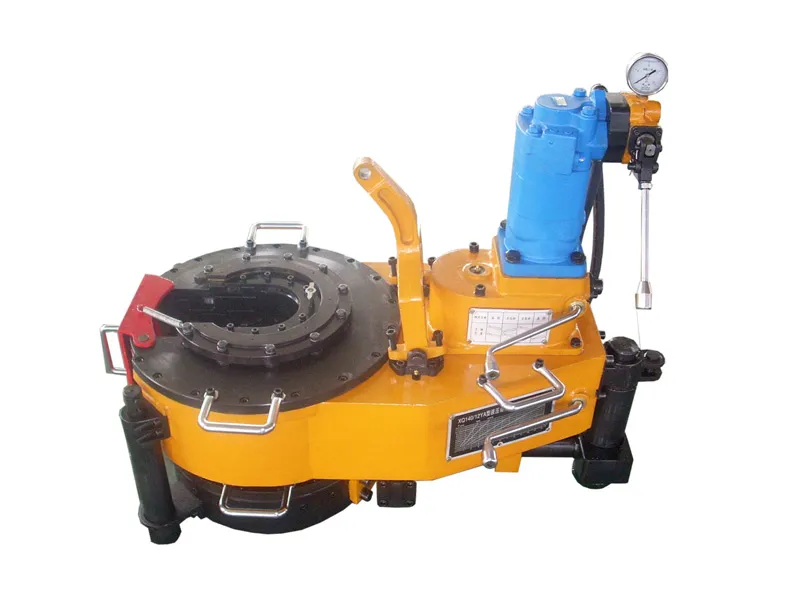

The XQ140/20 type workover power tong is an open type power tong used in oilfield workover operations to quickly add and remove threads. Suitable for oil pipes, small drill pipes, and small casings within the range of Ø 73-140mm (2 7/8 "-5 1/2"). Both onshore and offshore oil fields can be used, and the use of this product can reduce the labor intensity of well repair workers, improve work efficiency and well repair quality.

Characteristic:
The jaw plate of the tong head divided connect with die seat and needn’t to change any part during making up or breaking out the different tubes.
Four-gear rotation is adopted for large speed regulation range. And the rated torque is large.
The braking mechanism set above the tong head cover. It’s convenient for adjustment and maintenance.
The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on the master tong, the backup tong will automatically clip or simultaneously loosen the tube pillar.
Adjust the oil supply pressure, users can obtain the best make-up torque of various kinds oil tube.
Users can equip hydraulic suspension according to needs, the suspension valve compactly contact with hand control valve, so it is easy to control.
Users can equip torque control system according to needs, which can accuracy control make-up torque.


Application Scenarios



1	Application Range	2 7/8"-5 1/2"(73-140mm)Oil Pipe, Drill Pipe Joint, Small Casing
2	Torque Range@1740PS1/ 12 MPa	High:1770 ft-lbs/2300 N·m	Second High :4060 ft-lbs/5500 N·m
		Second Low:8415 ft-lbs/11400N·m	Low:14750 ft-lbs/20000 N·m
3	Max RPM @32GPM/120 LPM	High: 76 RPM	Second High: 51 RPM
		Second Low:20RPM	Low:8.7RPM
4	Oil Flow	1740 PSI @32GPM /12 MPa @120 LPM
5	Overall Dimension(LxWxH)	1118×631×839 mm
6	Weight	570kg
