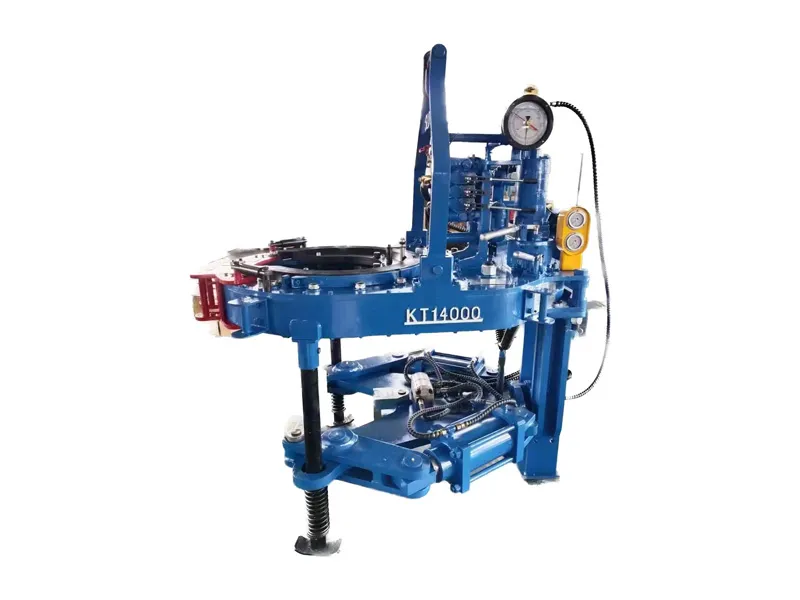

The KT14000 casing power tong is suitable for unloading pipe string threads during casing operations in oil fields and mines. It is a heavy-duty casing tong suitable for a maximum casing diameter of 14 inches. Its high operating efficiency greatly reduces the labor intensity of workers, improves the quality of casing string thread connections, and reduces casing string accidents caused by improper casing operations.

Technical Parameters：
1.Applicable Pipe Diameter Range：Main Pliers 4-14″    Back-Up Tong 4-15 1/2″
2.Clamp Head Speed：
High-Grade              24rpm
Secondary High End            18rpm
Next Lowest Gear            10rpm
Low End              4.5rpm
3.Maximum Torque：
High-Grade            6kN.m
Secondary High End          12kN.m
Next Lowest Gear          24kN.m
Low End            54kN.m
4.Rated Pressure：14MPa (2000PSI)
5.Work Flow：150L/min(40GPM)
6.Dimensions (Length x Width x Height):1630x980x1800 mm
8.Weight:1750kg


Application Scenarios



Jiangsu Shenlida Machinery Manufacturing Co., Ltd.  was founded in 2002 and is located at No. 46, Jianyang Industrial Central Zone, Jianhu County, Yancheng City, Jiangsu Province. It focuses on and deeply explores the petroleum machinery field.


The company has the independent right to import and export, and its products sell well both at home and abroad. The SLD bucking unit  has been recognized and used by the world's three major oilfield service companies---Schlumberger, Baker Hughes, Weatherford company.


Shenlida is a specialized, refined, characteristic, and new small - and medium - sized enterprise in Jiangsu Province and a network member unit of Sinopec, CNPC, and CNOOC. The company has passed the ISO 9001 quality management system, ISO 14001 environmental management system, and GB/T 28001 occupational health and safety management system certifications, effectively guaranteeing product quality and enterprise operation.


The company's products cover petroleum drilling and production equipment as well as automated equipment for drilling and workover operations, including various tubing tongs, casing tongs, drill pipe tongs, an intelligent torque automatic control system,bucking  unit  and supporting equipment, meeting diverse operation scenarios. The products are not only widely used in major domestic oilfields but also exported to regions such as Europe, America, Southeast Asia, the Middle East, and the Commonwealth of Independent States.


The company attaches great importance to R & D and innovation. It has set up a petroleum machinery research department and obtained 12 national invention patents. Meanwhile, it actively conducts industry - university - research cooperation with universities and undertakes scientific research projects of CNPC and CNOOC, contributing to the technological upgrading of the industry.


Adhering to the concept of "Quality - oriented, Innovation - driven", Shenlida is committed to providing global customers with environmentally friendly and intelligent petroleum machinery solutions. We warmly welcome domestic and foreign merchants to negotiate cooperation and create a bright future for the petroleum machinery industry!
